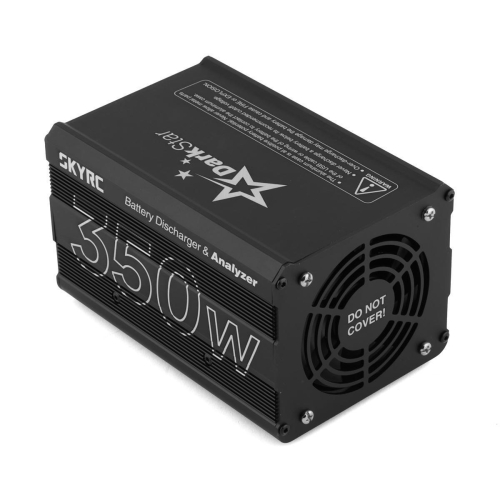

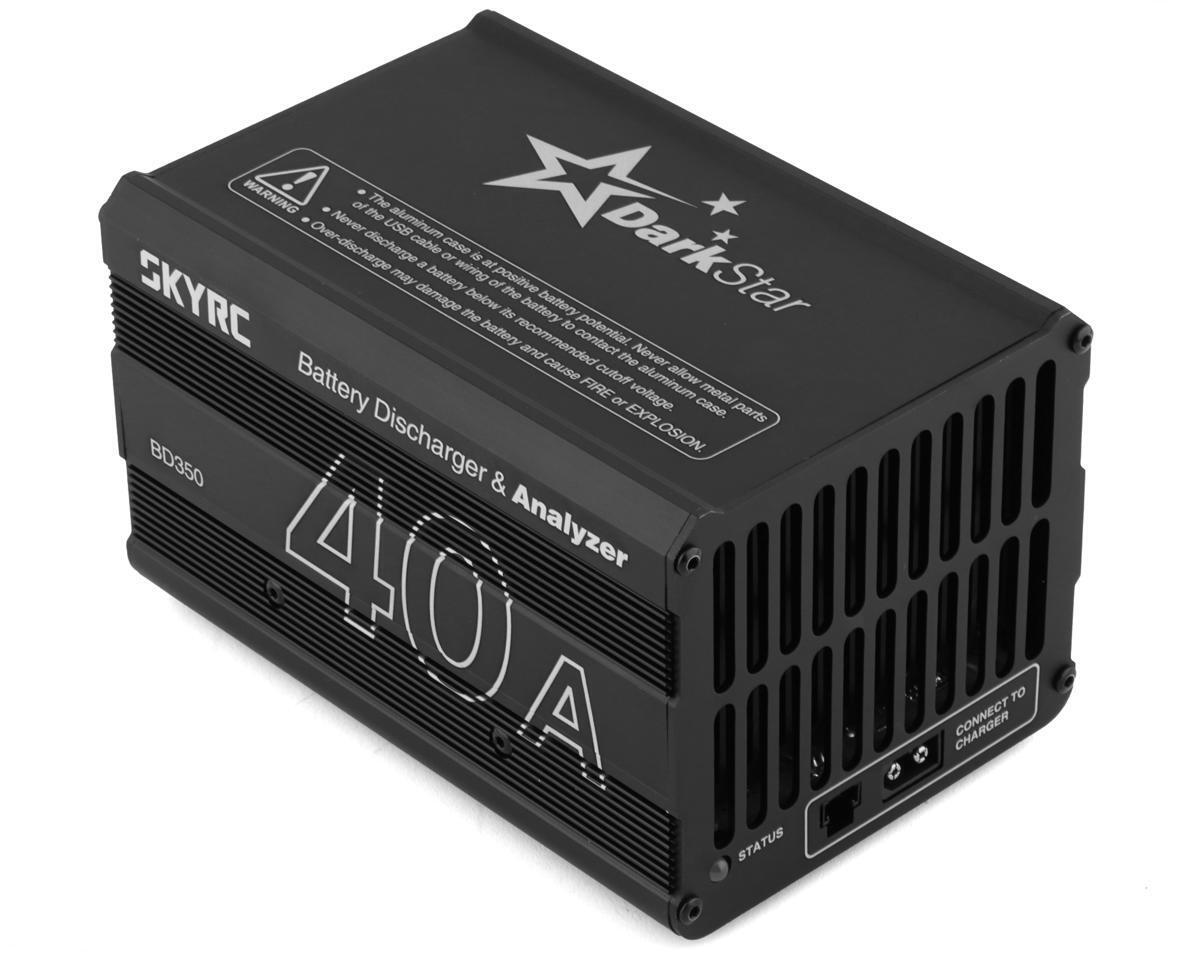

The BD350 is a high-performance discharger (external load for compatible SkyRC chargers) that allows discharging batteries at currents up to 40 A (with a maximum power of 350 W) and conducts measurement and assessment of battery performance. In combination with a compatible SkyRC charger and the Charge Master PC software, the BD350 enables precise measurement of actual battery capacity under fully controlled and repeatable conditions - when selecting the best battery for your application, you will no longer have to guess but will obtain "hard data." The BD350 is much more than just a battery charger or extreme condition tester. It can test almost all types of batteries - of any type and number of cells, up to a total voltage of 35 V. The BD350 is constructed in a sturdy aluminum housing with a powerful fan and uses a pair of cables - power and signal - to connect to the controlling charger.
Maximize the potential of your BD350 with SkyRC's Charger Master, a tailored software that allows you to view and export your battery's discharge curve in real time. With the ability to plot and compare various battery discharging curves, you can quickly and accurately identify defective batteries and ensure peak performance from your RC equipment. Trust the BD350 and Charger Master to keep your RC game on track.
BD350 is your perfect companion for the SkyRC T1000 and D200neo chargers. This discharger and the SkyRC pro chargers, mix and match as a team-up to upgrade your charging and discharging experience! To complement this discharger, we are rolling out more professional chargers that work seamlessly together.
BD350 is your perfect companion for the SkyRC T1000 and D200neo chargers. This discharger and the SkyRC pro chargers, mix and match as a team-up to upgrade your charging and discharging experience! To complement this discharger, we are rolling out more professional chargers that work seamlessly together.
Our bi-color LED status indicator, featuring both red and green lights, allows for easy real-time status checks at a glance.
With advanced multi-protection, the BD350 can safeguard your discharging!
1. SkyRC BD350

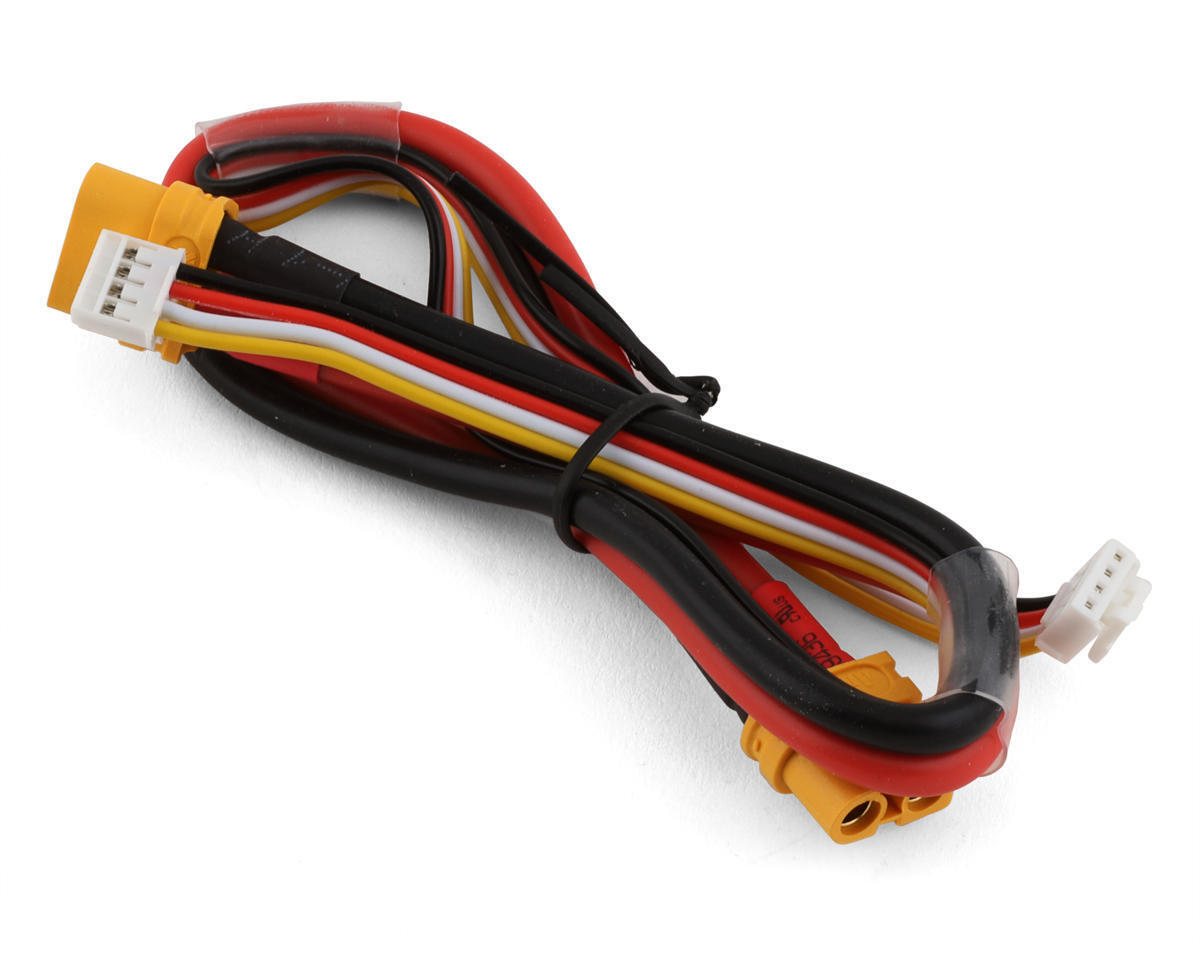

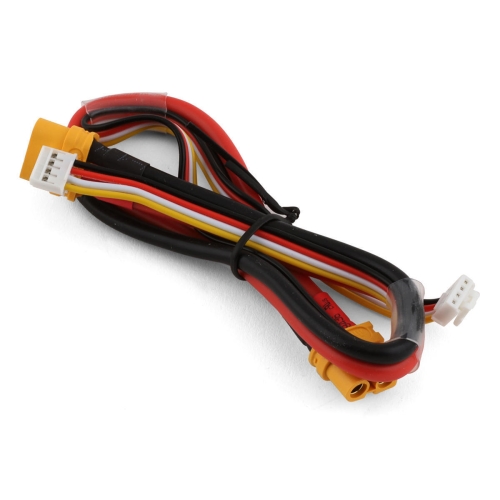

2. Cable
3. Manual
Size: 157x105x93mm
Net Weight: 1240g
Opertion Voltage: 5V±0.5V
Discharge Voltage: 3.0V-28.0V
Low Voltage Alert: ＜3.0V±0.5V
High Voltage Alert: ＞28V±1V
Discharge Power: 350W±5%
Discharge Current: 0.1-2A±0.1A, 2.1-20±5%, 0-40±6%
Standby Current: ≤100mA(Fan doesn't run and discharging doesn't begin)
Voltage Tolerance: 3-10V±8.mV, 10-28v±160mV
Capacity Tolerance: ±3%
Size: 157x105x93mm
Net Weight: 1240g
Opertion Voltage: 5V±0.5V
Discharge Voltage: 3.0V-28.0V
Low Voltage Alert: ＜3.0V±0.5V
High Voltage Alert: ＞28V±1V
Discharge Power: 350W±5%
Discharge Current: 0.1-2A±0.1A, 2.1-20±5%, 0-40±6%
Standby Current: ≤100mA(Fan doesn't run and discharging doesn't begin)
Voltage Tolerance: 3-10V±8.mV, 10-28v±160mV
Capacity Tolerance: ±3%
