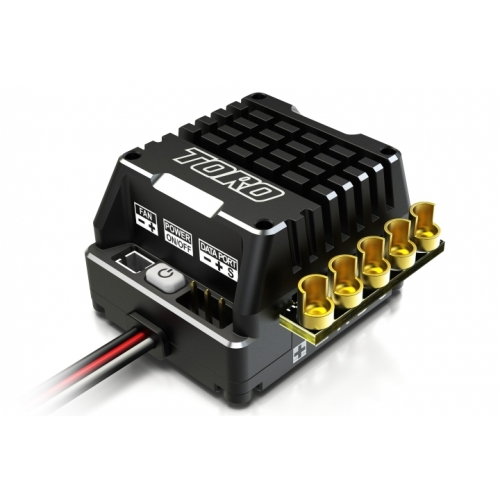

Main Page1 » Speed Controler2 » SkyRC TORO TS 160A ESC



Availability: Not available

Shipping time: 24 hours

The cost of shipping: from 2.25 Euro Available delivery forms for viewing the product:Curier Service - 4.05 Euro
Air Mail - 3.60 Euro
Poczta Polska list polecony - 2.25 Euro
Surface mail - 3.15 Euro
InPost Paczkomaty24 - 3.15 Euro
Personal Acceptance - 0.00 Euro

Number: 191

Producer code: SK-300064-01


Price: 119.02 Euro

Currently not available

add to wish list

  • Product description
  • Specifications:
  • Product reviews (0)
  TORO TS160 is designed for 1/10th cars. It runs on 2S to 3S LiPo batteries and has a built-in BEC with 5A and 6.0V/7.4V selectable voltage output. And it comes with internal power capacitors, high speed fan and built-in power switch.


  In terms of software, TS160 offers an advanced firmware for smoother throttle control. It can be programmed by program box, SKYLINK software and even your smart phone via Wi-Fi module.
  Compact design for easy location.
  Aluminum case for better heat dissipation.
  Built in power switch for saving space and reliable operation.
  Built in capacitor.
  Advanced boost and turbo timing system for improving acceleration performance.
  Well-performed throttle and brake control function.
  10 sets of profiles stored in the ESC for easy calling out.
  Adjustable BEC: 5A and 6.0V/7.4V selectable voltage .
  Powerful Skylink software which can test motor timing and advise the ESC timing setting.
  Low voltage protection.
  Motor and ESC overheat protection.
  Signal lost protection.
  The ESC can be programmed by program box, smart phone via
Wi-Fi module, and PC (Connected with SKYLINK).
  2.Smart phone via Wi-Fi Module(SK-600075).
  The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.
  Users could set the punch/brake control rate by point or custom the
throttle/brake curve by themselves,and different customers' request
for Line and power all can be met.
  Advanced Timing System
Users could set the turbo and boost timing which can improve the motor RPM to get its best performance.
  The firmware can be updated by connecting the ESC with PC or smart phone.
  Weight   45g (without wire)
  Constant/Burst Current


  Motor Compatible

Brushless Sensor & Sensorless ESC

  Car Compatible   1/10, 1/12 all competitions;1/10 and 1/8 Crawlers
  Motor Limits

2S Lipo or 4-6S NiMH ≥3.5T(1/10 on-road),
                                      ≥5.5T(1/10 off-road)
3S Lipo or 7-9S NiMH ≥5.5T(1/10 on-road),
                                      ≥8.5T(1/10 off-road)

  Resistance   0.00018ohm
  Battery Cell Count

4-9S NiMH or 2-3S LiPo

  BEC Output

6V/7.4V@5A, switch

  Fan   8V@0.2A , MAX 12.6V
